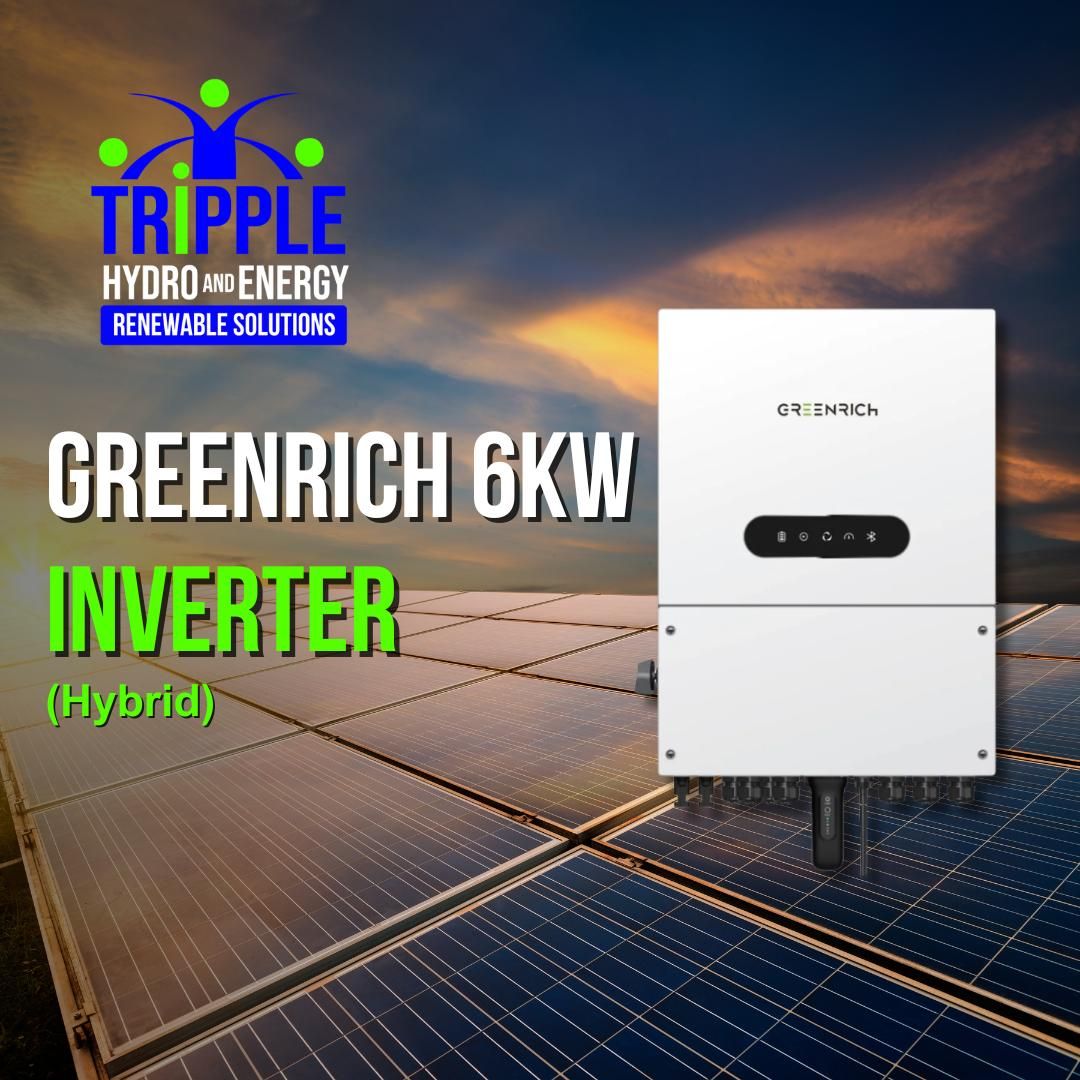

Greenrich 6kW Hybrid Inverter

Greenrich 6kW Hybrid Inverter

SPECIFICATIONS:

• Max PV Power: 9.6kW
• Max. Input Voltage 600V
• Rated Voltage 330V
• MPPT Voltage Range: 90~520V
• Start-up Voltage 90V
• Max. Input current 16A/16A
• Battery Type: Lead-Acid or Li-ion Battery
• Max. Short circuit current 24A/24A
• MPPT number/Max. Input strings number 2/2

Battery

• Battery Type: Lead-Acid or Li-ion Battery
• Battery voltage range 40-60V
• Max. Charge/discharge power 6kW
• Max. Charge/discharge current 135A
• Communication CAN/RS485

Output AC (Grid side)

• Rated output power 6kW
• Max. apparent output power 6.6kVA
• Rated grid voltage 220V/230V
• Rated grid frequency 50Hz/60Hz
• Rated grid output current 27.3A/26.1A
• Max. Output current 30A
• Power factor >0.99(0.8 leading-0.8 lagging)
• THDi <2%

Input AC (Grid side)

• Input voltage range 187-253V
• Max. Input current 40A
• Frequency range 45-55Hz/55-65Hz

Output AC (Back-up)

• Rated output power 6kW
• Max. apparent output power 2 times of rated power, 10s
• Back-up switch time <4ms
• Rated output voltage 1/N/PE, 220V/230V
• Rated frequency 50Hz/60Hz
• Rated output current 27.3A/26.1A
• Max. output current 30A
• THDv (@linear load) <2%

Efficiency

• Max. efficiency >97.5%
• EU efficiency >96.2%

Protection

• DC reverse-polarity protection yes
• Ground fault monitoring yes
• Integrated AFCI (DC arc-fault circuit protection) yes
• Protection class/Over voltage category l/ll

Product specifications: Click Here

Dimensions

• Weight (kg): 24
• Size 406 x 560 x 205 mm

WARRANTY:

5 Years Manufacturers Warranty + 5 year extension option - Terms & Conditions apply.
