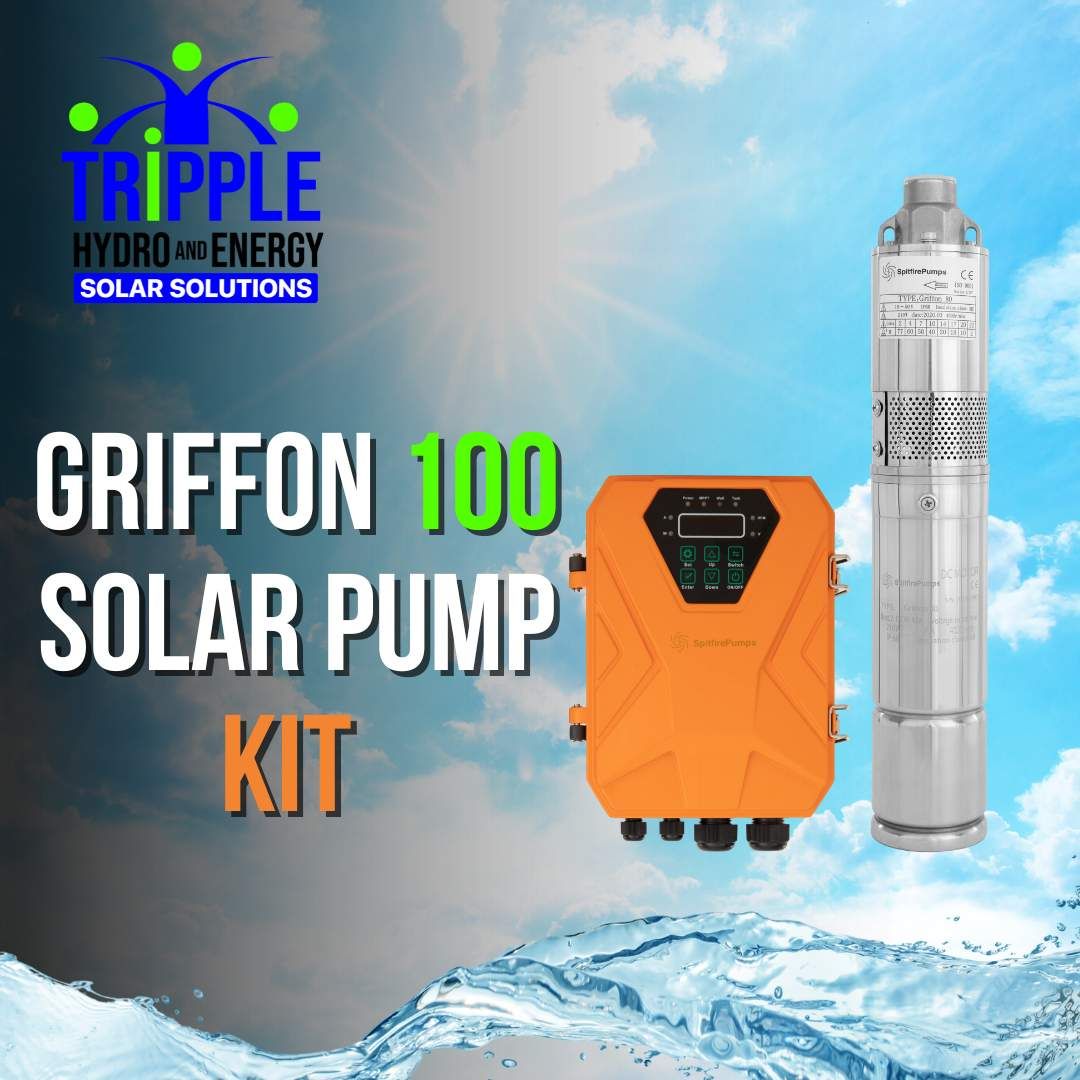

Spitfire Griffon 100 Solar Pump Kit

SPITFIRE GRIFFON 100 SOLAR PUMP KIT (Max Submersible Depth - 20m under water)

High performance submersible borehole pump is ideal for off-grid applications.

It is fitted with dry-run protection and adjustable speed control to easily adjust the motor speed.

INCLUDED IN PRICE

• Brush-less DC Submersible Solar Pump
• Digital Mppt Solar Pump Controller
• Solar Panel Cable 3m
• Cable Splicing Kit
• Instruction Manual & Quick Connection Guide
• (Please note the following is not included in the kit; submersible cable, Base Plate & Tank Level Probe)

SPECIFICATIONS

• Voltage - 48 Volt
• Power - 500 Watt
• DC Motor - Oil cooled
• Motor Outer Shell - Stainless Steel
• Pump Outer Shell - Stainless Steel
• Impeller style - Screw Type (Helical Rotor)
• Impeller material - Stainless Steel / Rubber
• Bearing - Ball Bearing
• Max Flow Rate - 1,650 l/hr
• Max Head: 100m
• Outlet size: 3/4″
• Outlet Stainless steel
• Best Input Voltage: 60-90V
• Maximum Input Current: 15A
• Max Open Circuit Voltage: <100V MPPT Voltage Range: 60-90V
• Working Temperature: -15 to 60°

SOLAR PV CONFIGURATION:

• 2 x 340W Renewsys A Grade Panels (NOT INCLUDED)

WARRANTY

Pump Controller - 1 Year (Terms & Conditions as per Installation Guide)
