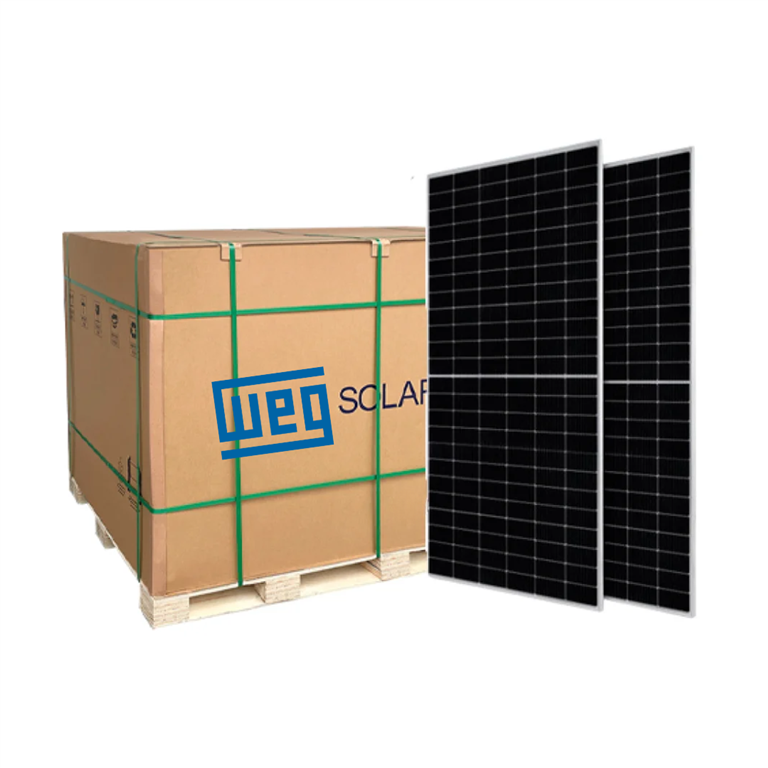

WEG 550W Solar Panel (Pallet of 36)

WEG 550W Solar Panel

This pallet comprises 36 solar panels from WEG, each capable of constructing systems with voltages of up to 1500Vdc. These photovoltaic modules showcase remarkable resistance to PID effects, along with sturdy mechanical strength and remarkable efficiency levels of up to 21.3%.

• Up to 1500Vdc systems
• High efficiecy levels reaching up 21,3%
• IP68 junction box
• IP68
• Handle up to 5400Pa snow loads,
• and 2400Pa wind loads
• PID High resistence to the PID effects
• MULTI-BUSBAR technolog

Here is a video about the WEG Solar Range

Specifications

• Maximum power (Pmax) 550 W
• Open circuit voltage (Voc) 49.90 V
• Short circuit current (Isc) 14.00 A
• Maximum power voltage (Vmp) 41.96 V
• Maximum power current (Imp) 13.11 A
• Module efficiency 21.3 %
• Power output tolerance + 5 W
• Maximum system voltage 1500 Vcc
• Maximum series fuse rating 25 A
• Operational temperature -40 oC a +85 oC

• Maximum power (Pmax) 416 W
• Open circuit voltage (Voc) 46.68 V
• Short circuit current (Isc) 11.17 A
• Maximum power voltage (Vmp) 39.43 V
• Maximum power current (Imp) 10.55 A
• NOCT 45°C +- 2°C

• Temperature coefficient (Pmax) -0.350 % / °C
• Temperature coefficient (Voc) -0.275 % / °C
• Temperature coefficient (Isc) 0.045 % / °C

MECHANICAL CHARACTERISTICS

• Solar cells Monocrystalline 182 x 91 mm / Half-cell
• Number of cells 144 (6 x 24)
• Module dimensions 2278 mm x 1134 mm x 30 mm
• Weight 27.3 Kg
• Front glass High transmission tempered glass
• Frame Anodized aluminium alloy
• Junction box IP68
• Cables 4mm² (IEC) length: 1400 mm
• Connectors MC4 compatible
• Packaging configuration 36 pcs/box, 720 pcs/40’HQ container
• Protection class Class II
• Fire class UL790
• Hailstone test 25mm hailstone at the speed of 23m/s

Product specifications: Click Here
