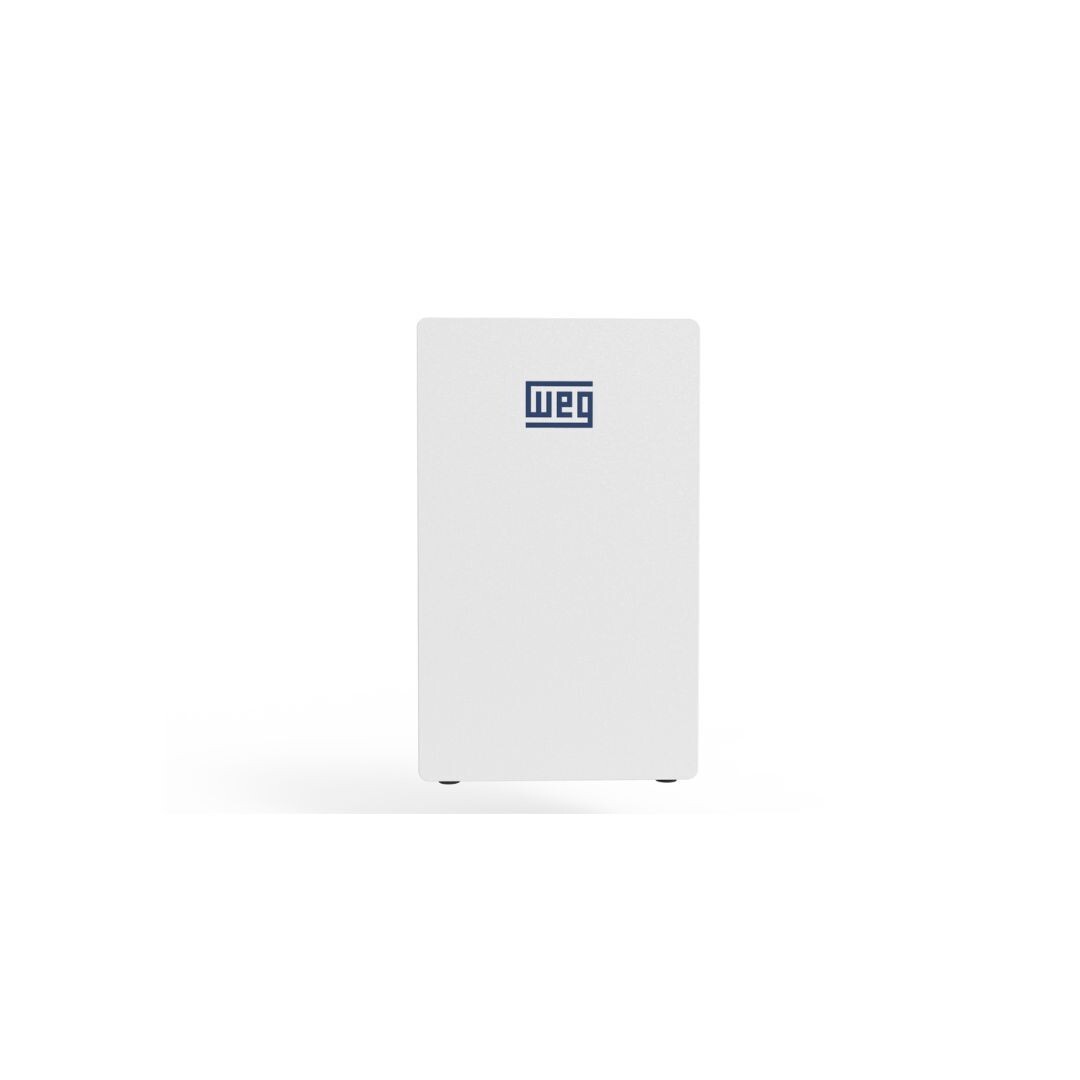

WEG 5kWh High Voltage Battery
Product Details
Brand:
Weg
WEG 5kWh Battery (With inbuild BMS)
This is an All-weather Battery, it can be installed indoor or outdoor.
Built-in fire surpression.
Protection and Special Features
- Voltage, current, temperature three-level alarm protection.
- Dynamic linear current reduction, power limit protection.
- BMS hardware redundancy design, single point of failure to ensure system safety.
- EOL warning protection strategy based on SOH estimation.
- BMS hardware and software functional safety design in line with IOS13849.
- In-line with UL9540A heat spreading protection module design.
- Standard with Built-in fire surpression.
- Micro-short circuit safety estimation algorithm and alarm protection inside the electric core.
Here is a video about the WEG Solar Range
Specifications
- Compatible All Series of SIW200H and SIW400H
- Module Quantity Per System Max 4 Parallel
- Battery type LiFePo4 Prismatic Cell
- Nominal capacity (Ah) 27
- Usable Energy (kWh) 5.02
- Max charge/discharge current (A)*1 27
- Recommended charge current (A) 13.5
- Nominal voltage (V) 192
- Nominal Energy (kWh) 5.18
- Operating voltage (V) 174.0 ~ 218.4
- Usable Capacity (Ah) 26.19
- Peak discrage current (A) 65 @ 30s
- Peak Charge current (A) 32.4 @ 5s
- Depth of discharge (%) 90
- Cycle life *2 ≥ 6000
- Communication CAN
OPERATING CONDITIONS
- Installation location Outdoor / Indoor
- Operating temperature (°C) Charge 0 ~ 55 / Discharge -10 ~ 55
- Storage temperature (°C) 0 ~ 35
- Cooling method Natural convection
- Humidity (%) 5 ~ 95 (No condensing)
- Altitude (m) Max 2000
Product specifications: Click Here
Installation guide: Click Here
